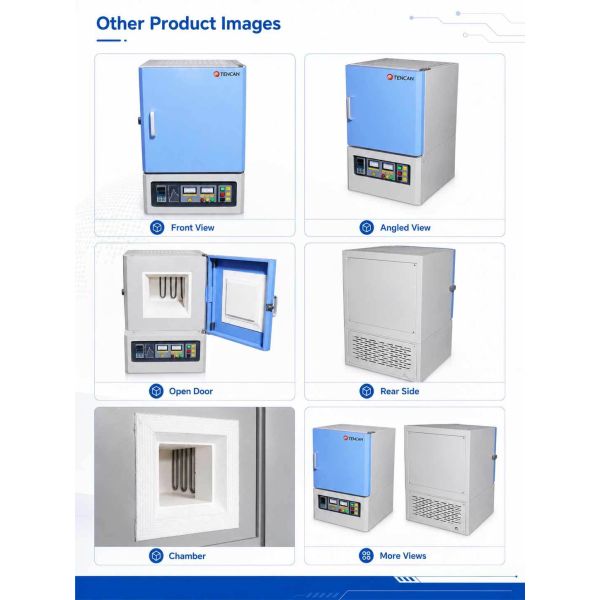

1800°C Ultra-High Temperature Muffle Furnace for Advanced Material Processing

Name: 1800C UltraHigh Temperature Muffle Furnace for Advanced Material Processing
Brand: TENCAN
Price: 1 USD

Best 1800°C Ultra-High Temperature Muffle Furnace for Advanced Material Processing wholesale

Certification : CE

Max Temperature : 1800°C

Furnace Lining : Polycrystalline Mullite Fiber

Delivery Time : 7~15

Temperature Control : 50-Segment Programmable PID Control

Cooling Design : Double-Layer Shell with Fan Cooling

Place of Origin : CHINA

Working Temperature : 1700°C

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Heating Element : Resistance Wire Heating

Safety Protection : Over-Heat Alarm Protection

MOQ : 1

Chamber Volume : 1L~729L, Customizable

Application : Sintering, Melting and Material Analysis

Brand Name : TENCAN

Product Type : Laboratory Box-Type Furnace

Contact Now

1800°C Ultra-High Temperature Muffle Furnace

The 1800°C Ultra-High Temperature Muffle Furnace is developed for demanding thermal processes that require extremely high operating temperatures, excellent temperature stability, and reliable long-term performance. It is suitable for advanced ceramic sintering, zirconia material processing, powder metallurgy, metal and non-metal heat treatment, material research, and high-temperature laboratory testing.

Designed as an electric box-type furnace, this 1800°C muffle furnace provides a clean and enclosed heating chamber to help protect samples during sintering, firing, calcination, and thermal analysis. The independent furnace chamber reduces direct exposure between the material and heating elements, supporting more consistent processing results and lower contamination risk.

The furnace insulation system is built with high-performance refractory fiber materials, offering strong heat retention, reduced heat loss, and improved energy efficiency during ultra-high-temperature operation. Its reinforced chamber structure enhances durability and helps maintain furnace stability during repeated heating and cooling cycles.

With precise temperature control, stable heating performance, and dependable safety protection, this 1800°C muffle furnace is an ideal solution for universities, research institutes, dental material laboratories, ceramic manufacturers, powder metallurgy facilities, and industrial R&D centers that require advanced high-temperature processing equipment.

1800°C Ultra-High Temperature Muffle Furnace for Advanced Material Processing

Product Features

Maximum temperature range: room temperature to 1800°C.
Available chamber capacities from 1 L to 1000 L.
Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.
Intelligent 50-segment programmable automatic temperature control.
Built-in over-temperature alarm for safer operation.
Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.

1200°C Box Furnace Technical Specifications

Model	Max. Temperature $° C$	Working Temperature $° C$	Chamber Size $W \times H \times D$ mm	Volume $L$	Power $k W$	Phase	Thermocouple Type
TC-12N-1	1200	1100	100×100×100	1	0.8	1	Type K
TC-12N-3	1200	1100	150×150×150	3	2.5	1	Type K
TC-12N-8	1200	1100	200×200×200	8	5	1	Type K
TC-12N-12	1200	1100	200×200×300	12	6	1	Type K
TC-12N-36	1200	1100	300×300×400	36	10	3	Type K
TC-12N-64	1200	1100	400×400×400	64	16	3	Type K
TC-12N-125	1200	1100	500×500×500	125	25	3	Type K
TC-12N-216	1200	1100	600×600×600	216	36	3	Type K
TC-12N-512	1200	1100	800×800×800	512	64	3	Type K
TC-12N-729	1200	1100	900×900×900	729	80	3	Type K

1400°C Box Furnace Technical Specifications

Model	Max. Temperature $° C$	Working Temperature $° C$	Chamber Size $W \times H \times D$ mm	Volume $L$	Power $k W$	Phase	Thermocouple Type
TC-14S-1	1400	1300	100×100×100	1	1	1	Type S
TC-14S-3	1400	1300	150×150×150	3	3	1	Type S
TC-14S-8	1400	1300	200×200×200	8	5	1	Type S
TC-14S-12	1400	1300	200×200×300	12	7	1	Type S
TC-14S-36	1400	1300	300×300×400	36	11	3	Type S
TC-14S-64	1400	1300	400×400×400	64	18	3	Type S
TC-14S-125	1400	1300	500×500×500	125	27	3	Type S
TC-14S-216	1400	1300	600×600×600	216	40	3	Type S
TC-14S-512	1400	1300	800×800×800	512	70	3	Type S
TC-14S-729	1400	1300	900×900×900	729	88	3	Type S

1700°C Box Furnace Technical Specifications

Model	Max. Temperature $° C$	Working Temperature $° C$	Chamber Size $W \times H \times D$ mm	Volume $L$	Power $k W$	Phase	Thermocouple Type
TC-17M-1	1700	1600	100×100×100	1	1	1	Type B
TC-17M-3	1700	1600	150×150×150	3	4	1	Type B
TC-17M-8	1700	1600	200×200×200	8	7	1	Type B
TC-17M-12	1700	1600	200×200×300	12	8	1	Type B
TC-17M-36	1700	1600	300×300×400	36	12	3	Type B
TC-17M-64	1700	1600	400×400×400	64	20	3	Type B
TC-17M-125	1700	1600	500×500×500	125	30	3	Type B
TC-17M-216	1700	1600	600×600×600	216	45	3	Type B
TC-17M-512	1700	1600	800×800×800	512	80	3	Type B
TC-17M-729	1700	1600	900×900×900	729	96	3	Type B

1800°C Box Furnace Technical Specifications

Model	Max. Temperature $° C$	Working Temperature $° C$	Chamber Size $W \times H \times D$ mm	Volume $L$	Power $k W$	Phase	Thermocouple Type
TC-18HM-1	1800	1700	100×100×100	1	2	1	Type B
TC-18HM-3	1800	1700	150×150×150	3	6	1	Type B
TC-18HM-8	1800	1700	200×200×200	8	8	1	Type B
TC-18HM-12	1800	1700	200×200×300	12	9	1	Type B
TC-18HM-36	1800	1700	300×300×400	36	15	3	Type B
TC-18HM-64	1800	1700	400×400×400	64	25	3	Type B
TC-18HM-125	1800	1700	500×500×500	125	35	3	Type B
TC-18HM-216	1800	1700	600×600×600	216	50	3	Type B

Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.

Related Accessories

Standard Accessories

Furnace door insulation brick
High-temperature gloves
Crucible tongs
User manual
Spare heating elements for 1400°C and 1700°C models

Optional Accessories

HD touchscreen controller
Exhaust port
Observation window
Multi-layer kiln furniture
Alumina crucible
Communication software
